Model
|
GB0102
|
Ultrasonic power
|
60W
|
|
Tank capacity
|
2L
|
Heating power
|
No
|
|
Tank size
|
150*135*100mm
|
Frequency
|
40KHz
|
|
Unit size
|
175*165*190mm
|
Tank material
|
SUS304
|
|
Timer
|
1~30min adjustable
|
Housing material
|
SUS201
|
|
Heater
|
No heater
|
Voltage
|
AC 100~120V, 60Hz
AC 220~240V, 50Hz |
|
More Features
|
Mechanical Timer Knob Adjust
|
||
Features:
Mechanical time control: mechanical knob to control the cleaning time;
Electroplating handle: using electroplating bright silver handle, corrosion-resistant, classy;
Time adjustable: 1~30 minutes free choice, suitable for more items cleaning;
304 inner liner: SUS304 material, 1 time forming stamping;
201 shell: SUS201 stainless steel printing, anti-fingerprint and dirt-resistant design;
201 sound reduction cover: SUS201 material, brushed stainless steel design;

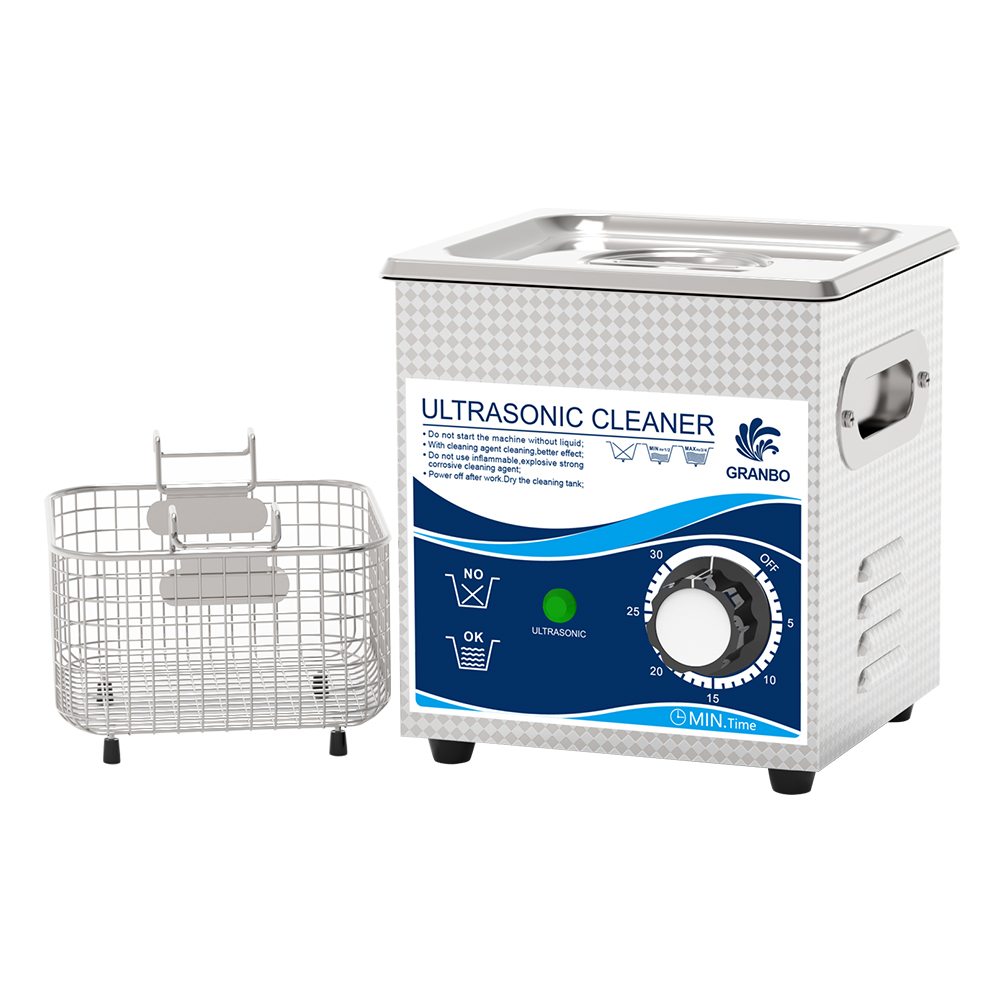

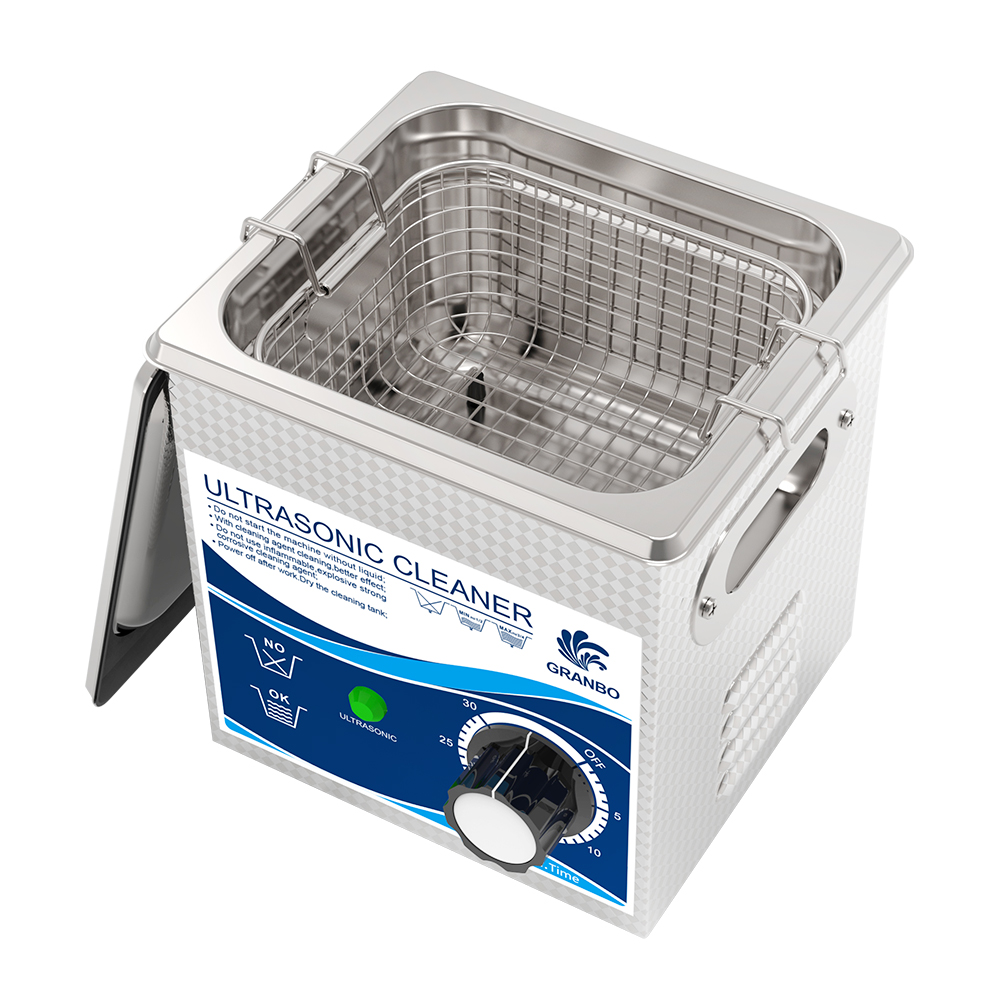

Stainless steel basket: SUS304 material, 10mm mesh design;

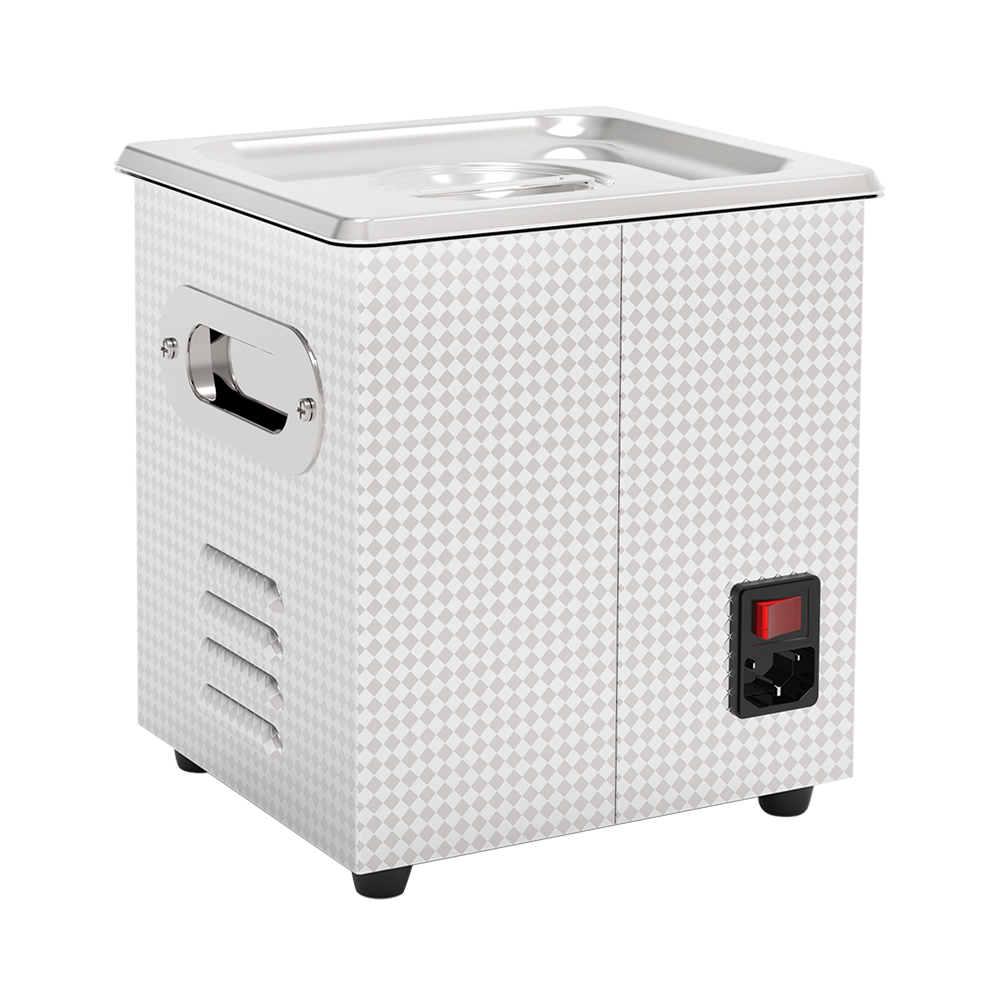

Independent power switch: convenient for the machine to switch the machine, reducing the number of times to pull the plug;
High-quality non-slip feet: the use of high-quality silicone non-slip feet design, the machine more stable;
Thicker power cord: using industrial grade power cord, 3-pin grounded plug, anti-static design;
Independent research and development drive: the use of independent research and development drive board, imported electrical components stable output;
Industrial transducer: the use of industrial shock head 40KHz, strong effect;
All-round heat dissipation: more than 4.5L machine with cooling fan + multi-hole bit heat dissipation.
Cleaning video.
Scope of application.
1. Household range of application: cleaning high-grade watches, brand glasses, jewelry and other valuable items and watch chain, water pen, CD, shaver, comb, toothbrush, dentures, tea sets and milk bottles, pacifiers and other types of daily necessities, as well as cleaning fruits, vegetables, fish, dishes and chopsticks.
2. Manufacturing and processing industry: dust removal, oil removal, rust removal, wax removal, rosin removal, paint removal, glue removal, and stubborn stains removal
3. Scope of application of instruments: dentistry, laboratory, sterilization center and other departments of instruments, such as: dental handpieces, test containers, glass pieces, test tubes, test vessels, bottles and plates containers, etc.
4. Laboratory and pharmaceutical industry scope of application: can clean a variety of instruments, containers, beakers, measuring instruments, etc., in addition to mixing, promotion of melting, emulsification, extraction, etc.
Use method.
1. Plug in the power supply, check whether the display is normal, confirm that the machine has been powered on, the power indicator lights up, the display panel display lights up;
2. The machine inside the tank to join the cleaning solution, the cleaning blue with items into the machine inside the tank (glasses can be cleaned without putting on the basket);
3. Set the cleaning time (default is 5 minutes), press start;
4. If you need to heat, set the temperature and press the temperature switch to turn on the heating (008 series and mechanical timing series without heating system);
5. After cleaning, turn off the power and unplug the machine power cord, dispose of the cleaning fluid in the machine slot, wipe the machine clean and put away;
Instruction manual download.
GB-series-ultrasonic-cleaner-mechanical-timer-adjustable-manual-min.pdf
