Model
|
GW1522
|
Ultrasonic power
|
450/900W
|
|
Tank capacity
|
22L
|
Heating power
|
600W
|
|
Tank size
|
500*300*150mm
|
Frequency
|
40KHz
|
|
Unit size
|
530*330*280mm
|
Tank material
|
SUS304
|
|
Timer
|
Digital 1~30min adjustable
|
Housing material
|
SUS201
|
|
Heater
|
20°C – 80°C
|
Voltage
|
AC 100~120V, 60Hz
AC 220~240V, 50Hz |
|
More Features
|
Digital Control + Timer + Heater + Degas +Semi Wave
|
||
Features:
Change wave + degas: half wave rough washing + degas lifting school function
Digital display: digital display of the cleaning time and a countdown reading function
Touch operation: light touch button design, easy to operate and not easy to damage
Time adjustable: 1-30 minutes free choice, suitable for more items to clean
Temperature adjustable: room temperature ~ 80 ° adjustable, with automatic thermostat function
304 inner liner: SUS304 material, 1 time forming stamping
201 shell: SUS201 stainless steel printing, anti-fingerprint and dirt-resistant design
201 sound reduction cover: SUS201 material, stainless steel brushed design

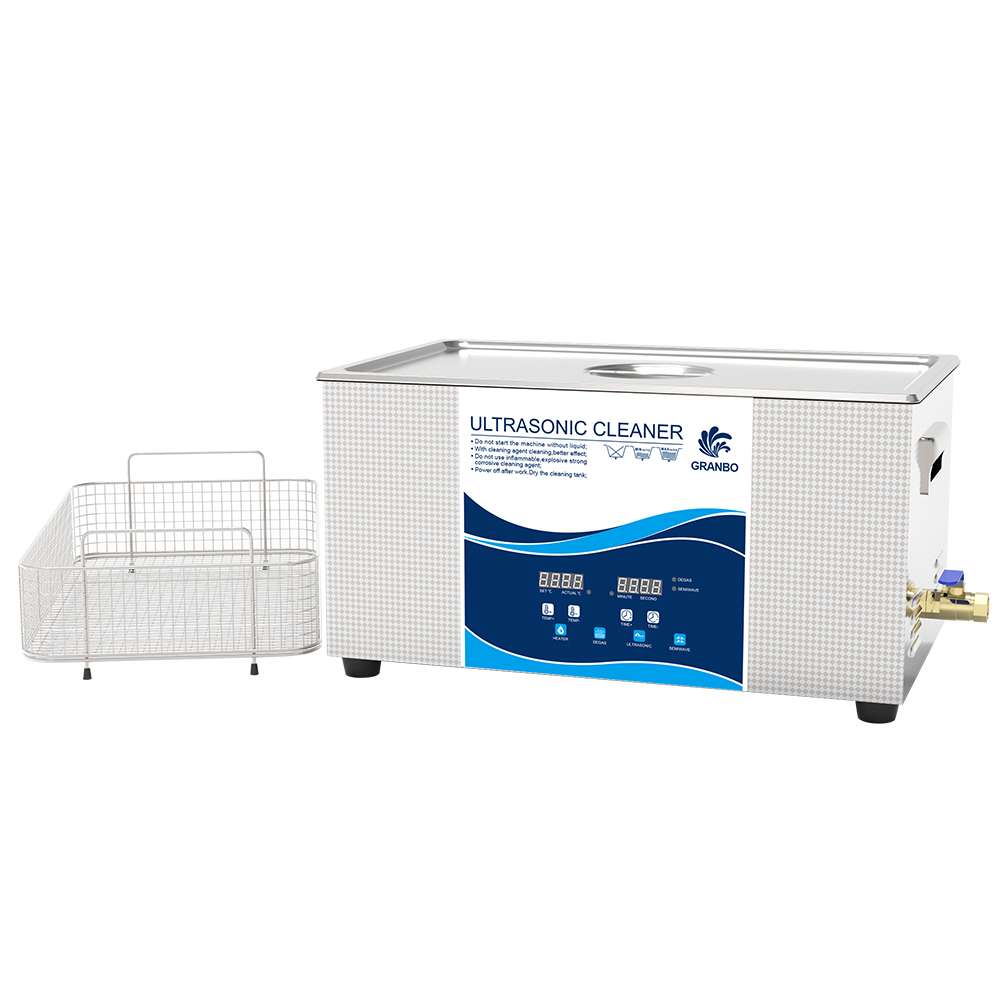

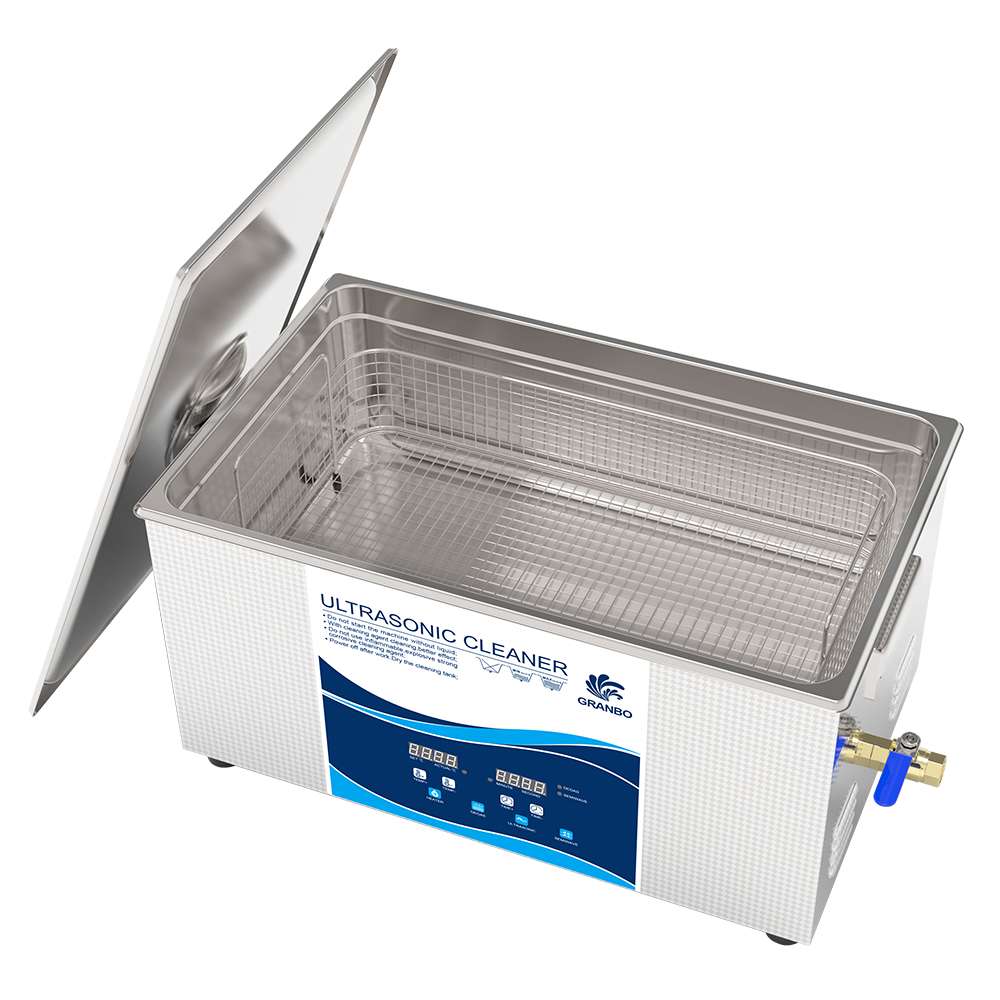

Stainless steel basket: SUS304 material, 10mm mesh design

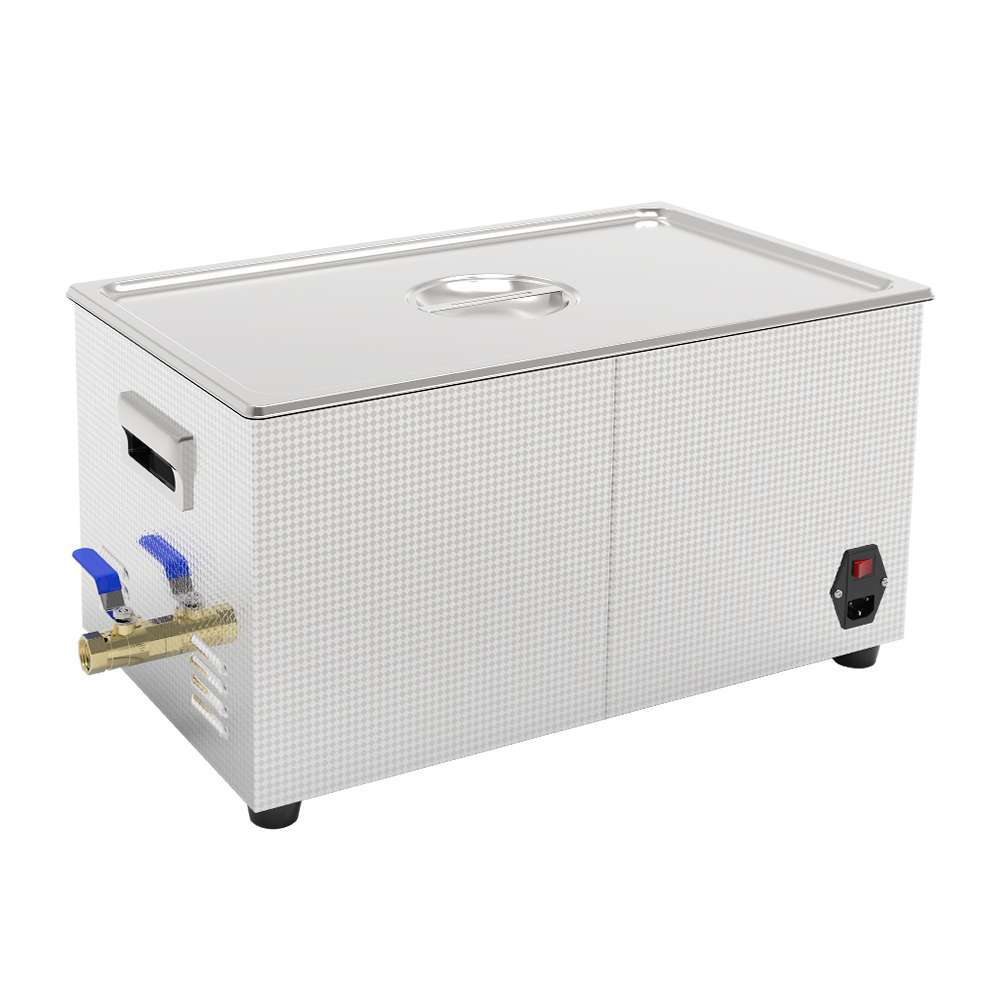

Independent power switch: convenient machine switch machine, reducing the number of times to pull the plug
High-quality non-slip feet: the use of high-quality silicone non-slip feet design, the machine more stable
Thicker power cord: industrial grade power cord, 3-pin grounding plug, anti-static design
Independent research and development drive: the use of independent research and development drive board, imported electrical components stable output
Industrial transducer: the use of industrial shock head 40KHz, strong strength and good results

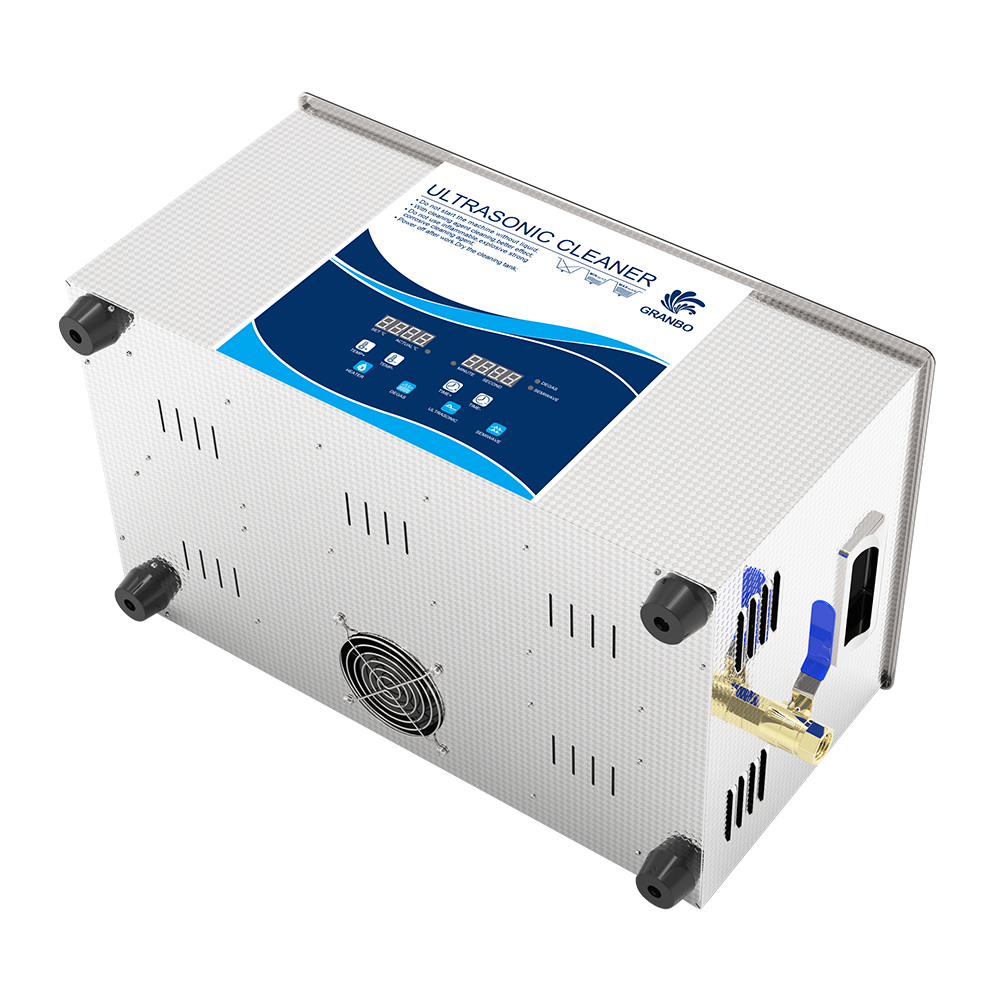

All-round heat dissipation: more than 4.5L machine with cooling fan + multi-hole bit heat dissipation
Cleaning video.
Scope of application.
1. Household range of application: cleaning high-grade watches, brand glasses, jewelry and other valuable items and watch chain, water pen, CD, shaver, comb, toothbrush, dentures, tea sets and milk bottles, pacifiers and other types of daily necessities, as well as cleaning fruits, vegetables, fish, dishes and chopsticks.
2. Manufacturing and processing industry: dust removal, oil removal, rust removal, wax removal, rosin removal, paint removal, glue removal, and stubborn stains removal
3. Scope of application of instruments: dentistry, laboratory, sterilization center and other departments of instruments, such as: dental handpieces, test containers, glass pieces, test tubes, test vessels, bottles and plates containers, etc.
4. Laboratory and pharmaceutical industry scope of application: can clean a variety of instruments, containers, beakers, measuring instruments, etc., in addition to mixing, promotion of melting, emulsification, extraction, etc.
Use method.
1. Plug in the power supply, check whether the display is normal, confirm that the machine has been powered on, the power indicator lights up, the display panel display lights up;
2. The machine inside the tank to join the cleaning solution, the cleaning blue with items into the machine inside the tank (glasses can be cleaned without putting on the basket);
3. Set the cleaning time (default is 5 minutes), press start;
4. If you need to heat, set the temperature and press the temperature switch to turn on the heating (008 series and mechanical timing series without heating system);
5. After cleaning, turn off the power and unplug the machine power cord, dispose of the cleaning fluid in the machine slot, wipe the machine clean and put away;
Instruction manual download.
GW Series：Digital Control + Timer + Heater + Degas + Semi Wave
