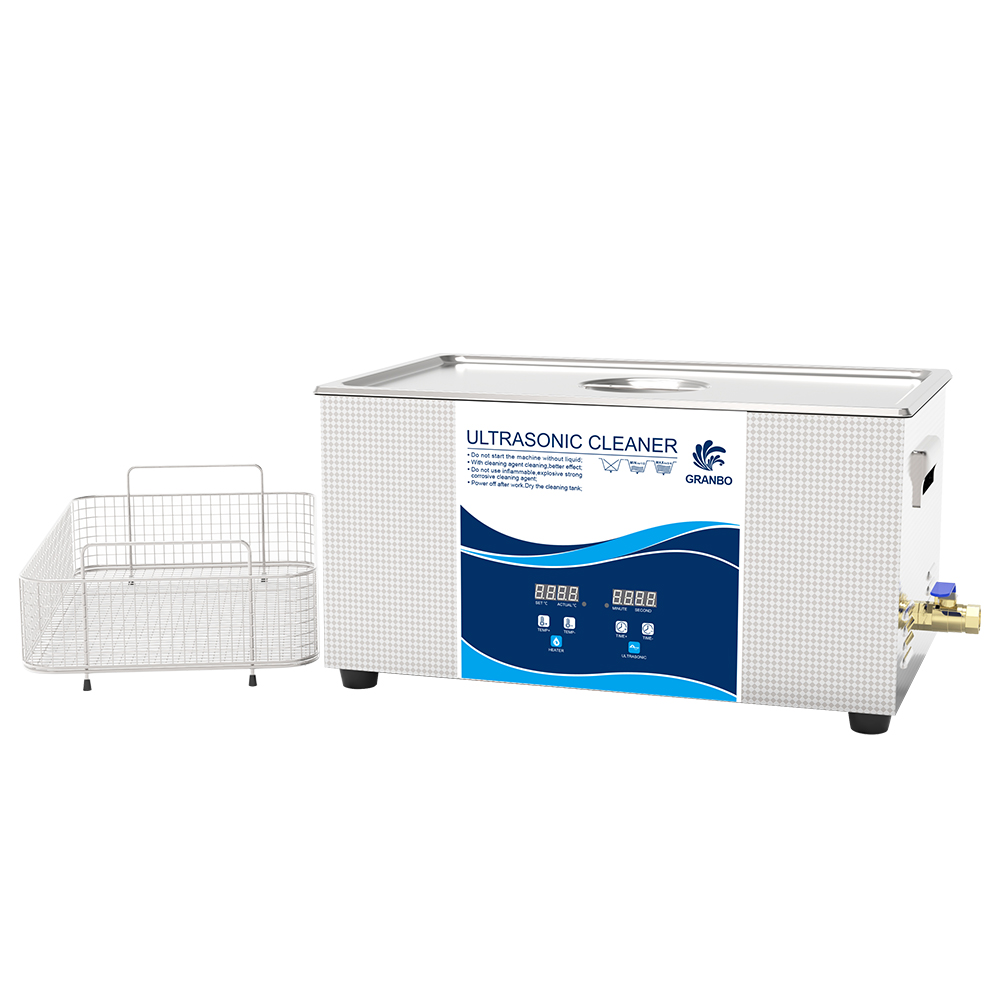

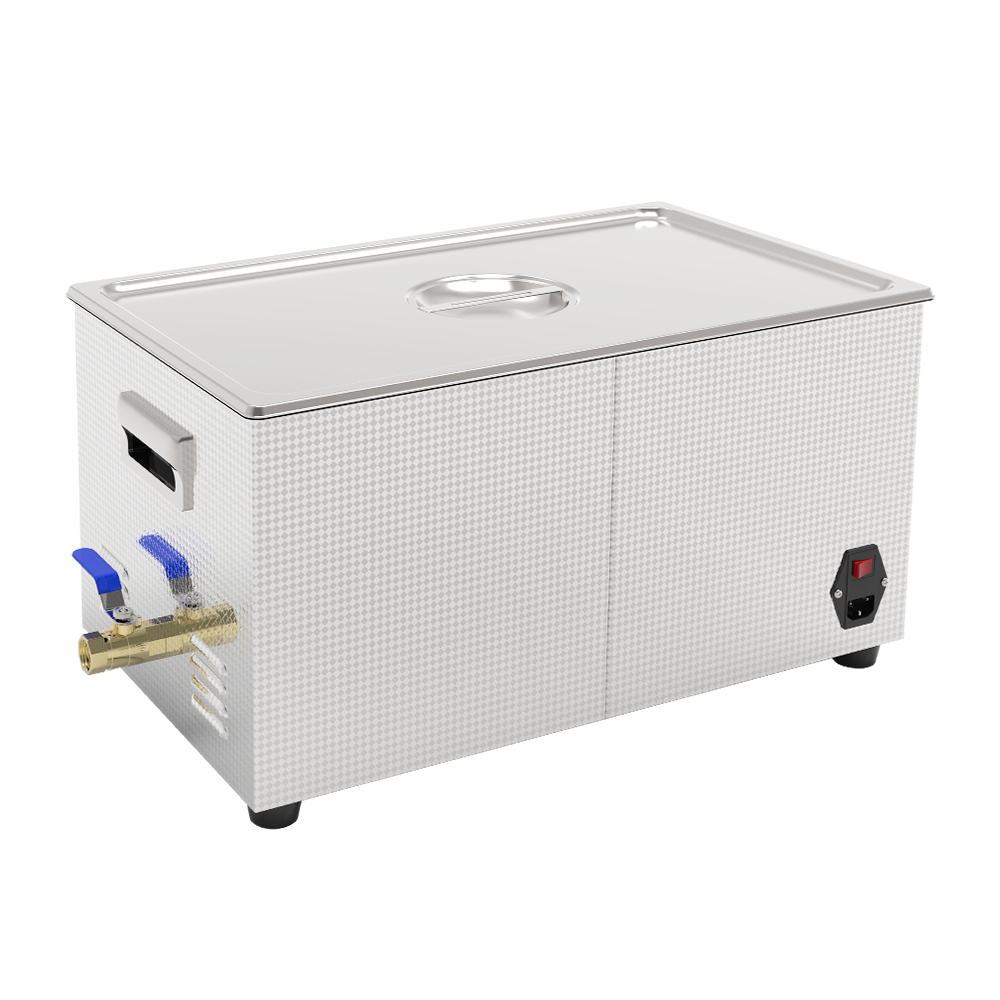

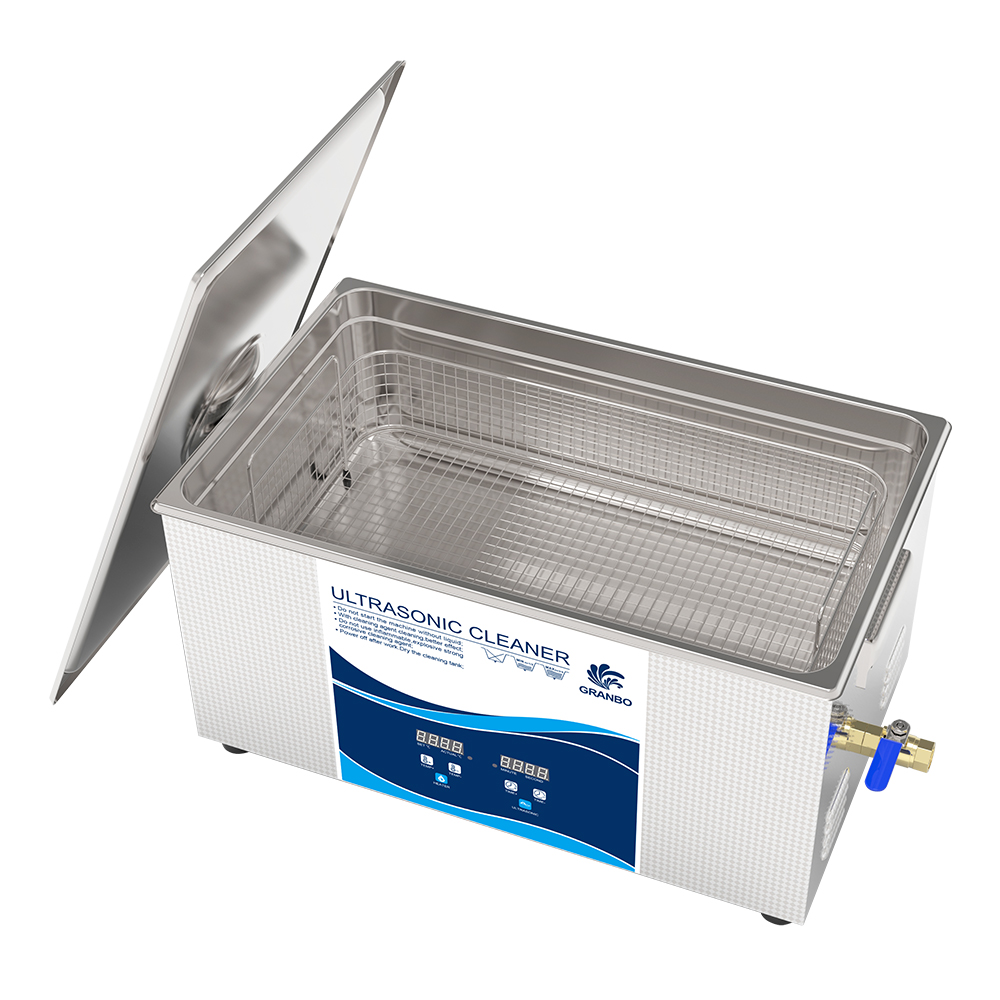

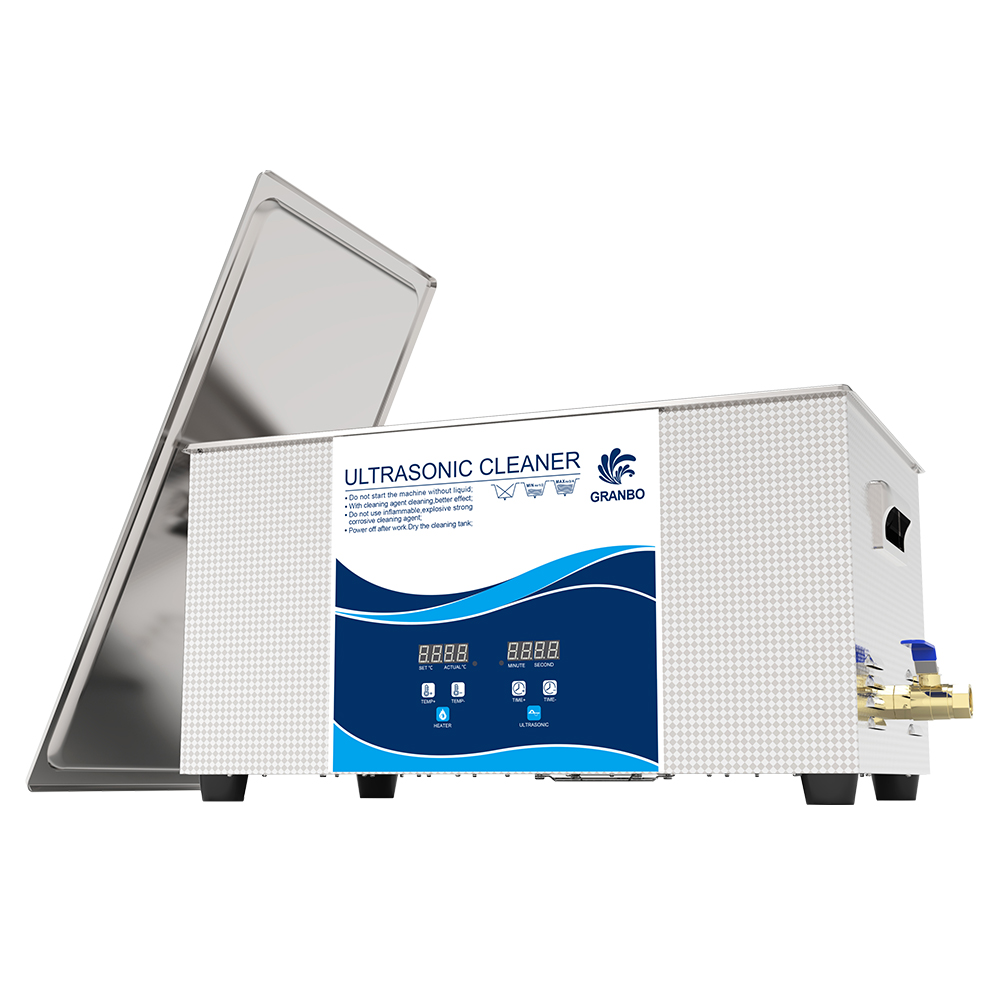

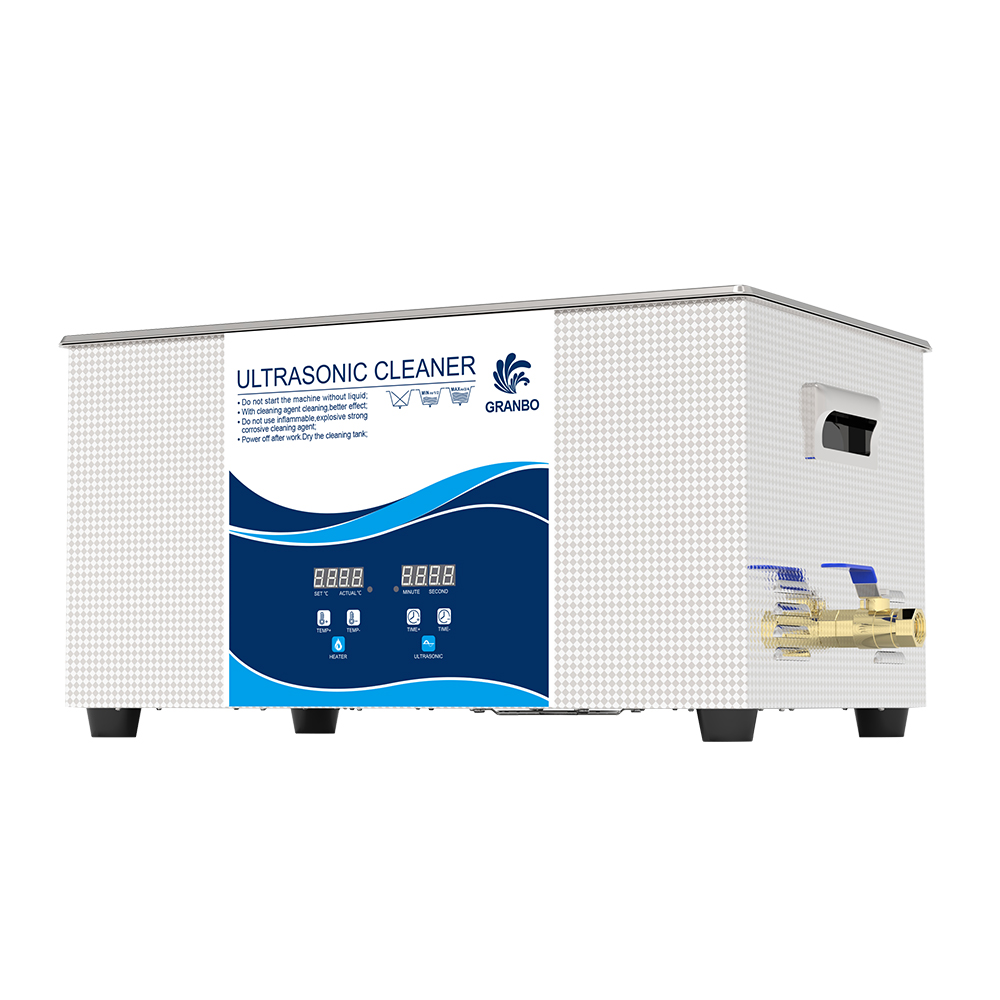

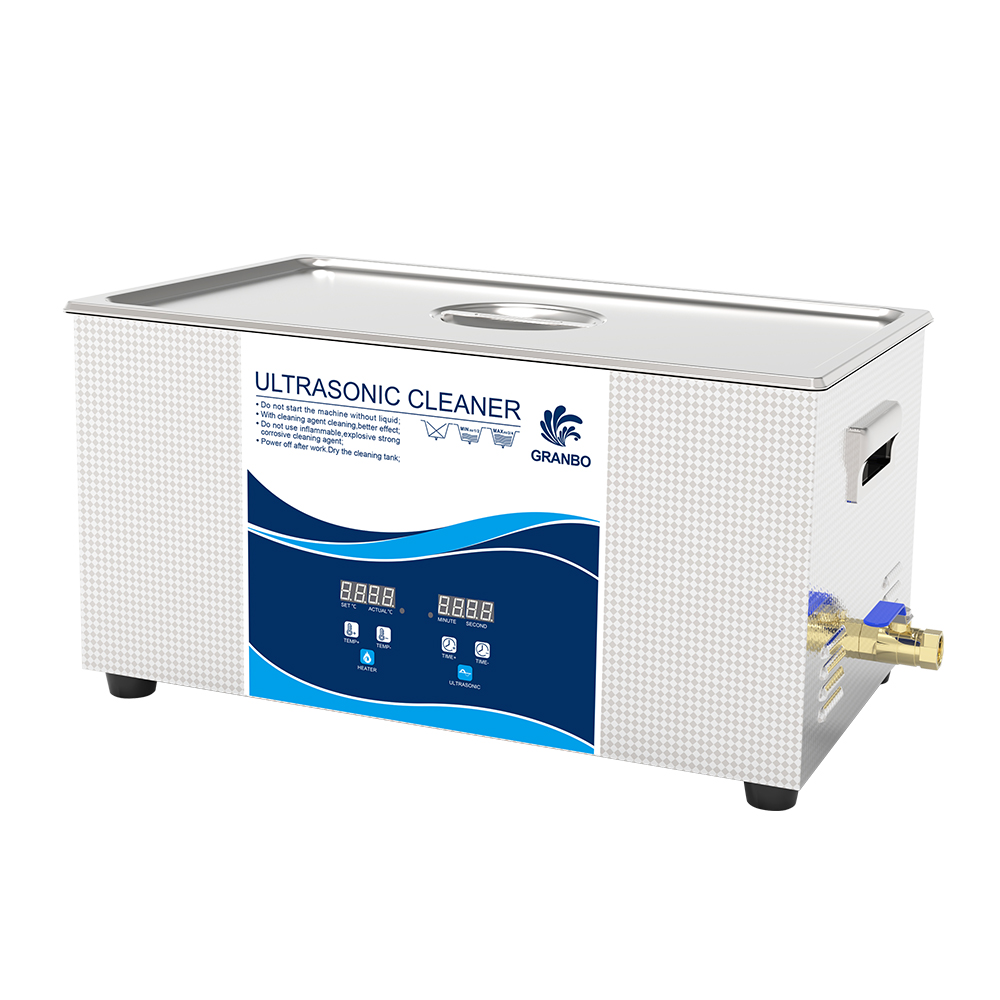

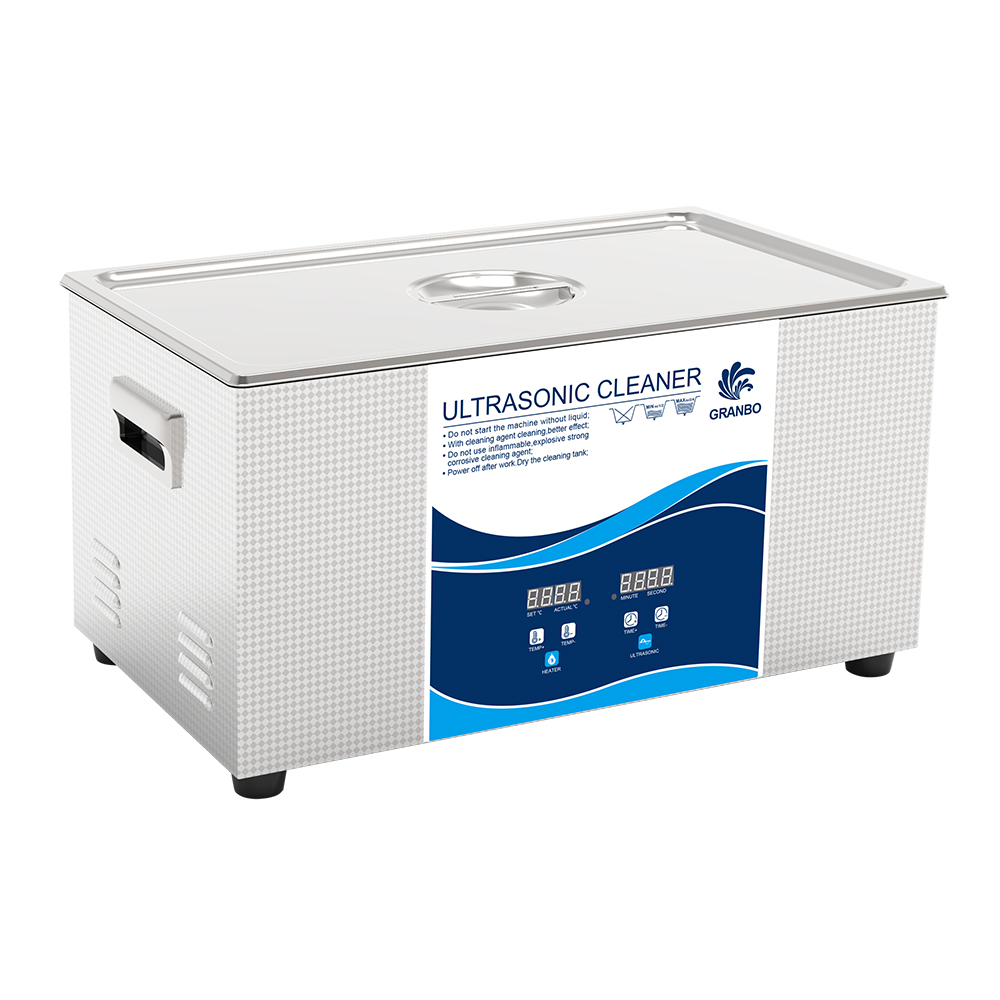

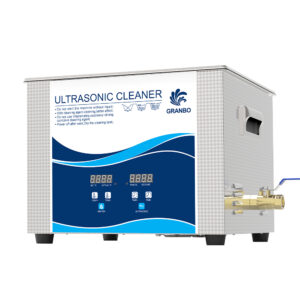

22L Professional Ultrasonic Cleaner Machine with 304 Stainless Steel and Digital Timer Heater for Jewelry Watch Coin Glass Circuit Board Dentures Small Parts

  • Brand:Granbo
  • Model:GS1522
  • Place of origin: Shenzhen, China
  • Warranty: one year warranty, lifetime maintenance
  • Product capacity: 22L
  • Product power: 900w
  • Operating frequency: 40khz
  • Heating power: 600W
  • Inner groove size: 500*300*150mm
  • Overall dimension:530*330*280mm
  • Package size: 635*405*340mm
  • Net weight / gross weight: 14.7 / 16kg
  • Use of power: AC110V-120V/60Hz | AC220V-240V/50Hz
  • Packing type: one unit filled with thick foam, then standard export carton
  • Machine parts: one main unit, one cover, one net basket (optional for some models), one power cord, one manual warranty card certificate of conformity.
  • Lead Time:
    Quantity(units) 1 – 10 11 – 50 51 – 100 >100
    Est. Time(days) 2 5 10 To be negotiated

Why Choose Granbo?

  • Original Manufacturer
  • Efficient cleaning
  • Advanced Technology
  • Strong R&D Capability
Model
GS1522
Ultrasonic power
900W
Tank capacity
22L
Heating power
600W
Tank size
500*300*150mm
Frequency
40KHz
Unit size
530*330*280mm
Tank material
SUS304
Timer
Digital 1~30min adjustable
Housing material
SUS201
Heater
20°C – 80°C
Voltage
AC 100~120V, 60Hz
AC 220~240V, 50Hz
More Features
Digital Control + Timer + Heater + Degas

Functional features.

One key degassing: effective discharge of air in the liquid, reduce the oxidation of goods to enhance cleaning efficiency;

Digital display: digital display of cleaning time and countdown reading function;

Touch operation: light touch button design, easy to operate and not easy to damage;

Time adjustable: 1~30 minutes free choice, suitable for more items cleaning;

Temperature adjustable: room temperature ~ 80 ° adjustable, with automatic thermostat function;

304 inner liner: SUS304 material, 1 time forming stamping;

201 shell: SUS201 stainless steel printing, anti-fingerprint and dirt-resistant design;

201 sound reduction cover: SUS201 material, stainless steel brushed design;

Stainless steel basket: SUS304 material, 10mm mesh design;

Independent power switch: convenient for the machine to switch the machine, reducing the number of times to pull the plug;

High-quality non-slip feet: the use of high-quality silicone non-slip feet design, the machine is more stable;

Thicker power cord: using industrial grade power cord, 3-pin grounded plug, anti-static design;

Independent research and development drive: the use of independent research and development drive board, imported electrical components stable output;

Industrial transducer: the use of industrial shock head 40KHz, strong effect;

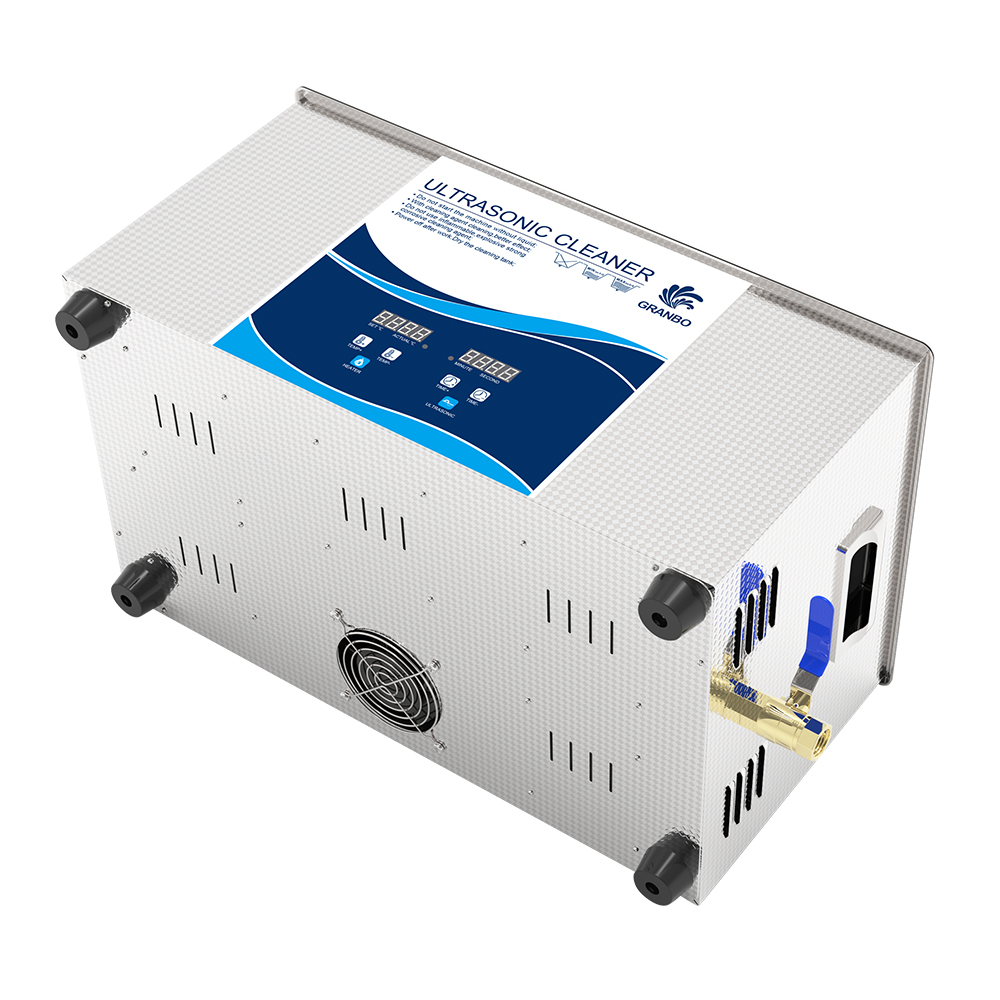

All-round heat dissipation: more than 4.5L machine with cooling fan + multi-hole bit heat dissipation.

Cleaning video.

Scope of application.

1. Household range of application: cleaning high-grade watches, brand glasses, jewelry and other valuable items and watch chain, water pen, CD, shaver, comb, toothbrush, dentures, tea sets and milk bottles, pacifiers and other types of daily necessities, as well as cleaning fruits, vegetables, fish, dishes and chopsticks.

2. Manufacturing and processing industry: dust removal, oil removal, rust removal, wax removal, rosin removal, paint removal, glue removal, and stubborn stains removal

3. Scope of application of instruments: dentistry, laboratory, sterilization center and other departments of instruments, such as: dental handpieces, test containers, glass pieces, test tubes, test vessels, bottles and plates containers, etc.

4. Laboratory and pharmaceutical industry scope of application: can clean a variety of instruments, containers, beakers, measuring instruments, etc., in addition to mixing, promotion of melting, emulsification, extraction, etc.

Use method.

1. plug in the power supply, check whether the display is normal, confirm that the machine is powered on, the power indicator lights up, the display panel display lights up.

2. machine inside the tank to add cleaning solution, the cleaning blue with items into the machine inside the tank (glasses cleaning can be done without putting on the basket).

3. set the cleaning time (default is 5 minutes), press start.

4. If you need to heat, set the temperature and press the temperature switch to turn on the heating (008 series and mechanical timing series without heating system).

5. After cleaning, turn off the power and unplug the machine power cord, dispose of the cleaning fluid in the machine slot, wipe the machine clean and put away.

Instruction manual download.

GS-Series-Ultrasonic-Cleaner-Digital-Timer-Heater-Degas.pdf

Weight 16 kg
Dimensions 63.5 × 40.5 × 34.0 cm
Capacity

22L
